Wire EDM for Precision Plastic Extrusion Tooling

What is Wire EDM?

Wire Electrical Discharge Machining (EDM) is a non-contact precision cutting process that uses electrical discharges to erode metal. Unlike traditional machining, there are no cutting tools or mechanical stress, resulting in tighter tolerances, sharper corners, and smoother finishes.

For plastic extrusion tooling, these advantages make a measurable difference:

  • Increased precision (±0.0001")
  • Greater consistency that delivers repeatable accuracy across high-volume runs.
  • Enhanced durability allows tooling to withstand hardened steels and exotic alloys without compromise.

Machine Spotlight

Mitsubishi 1200R

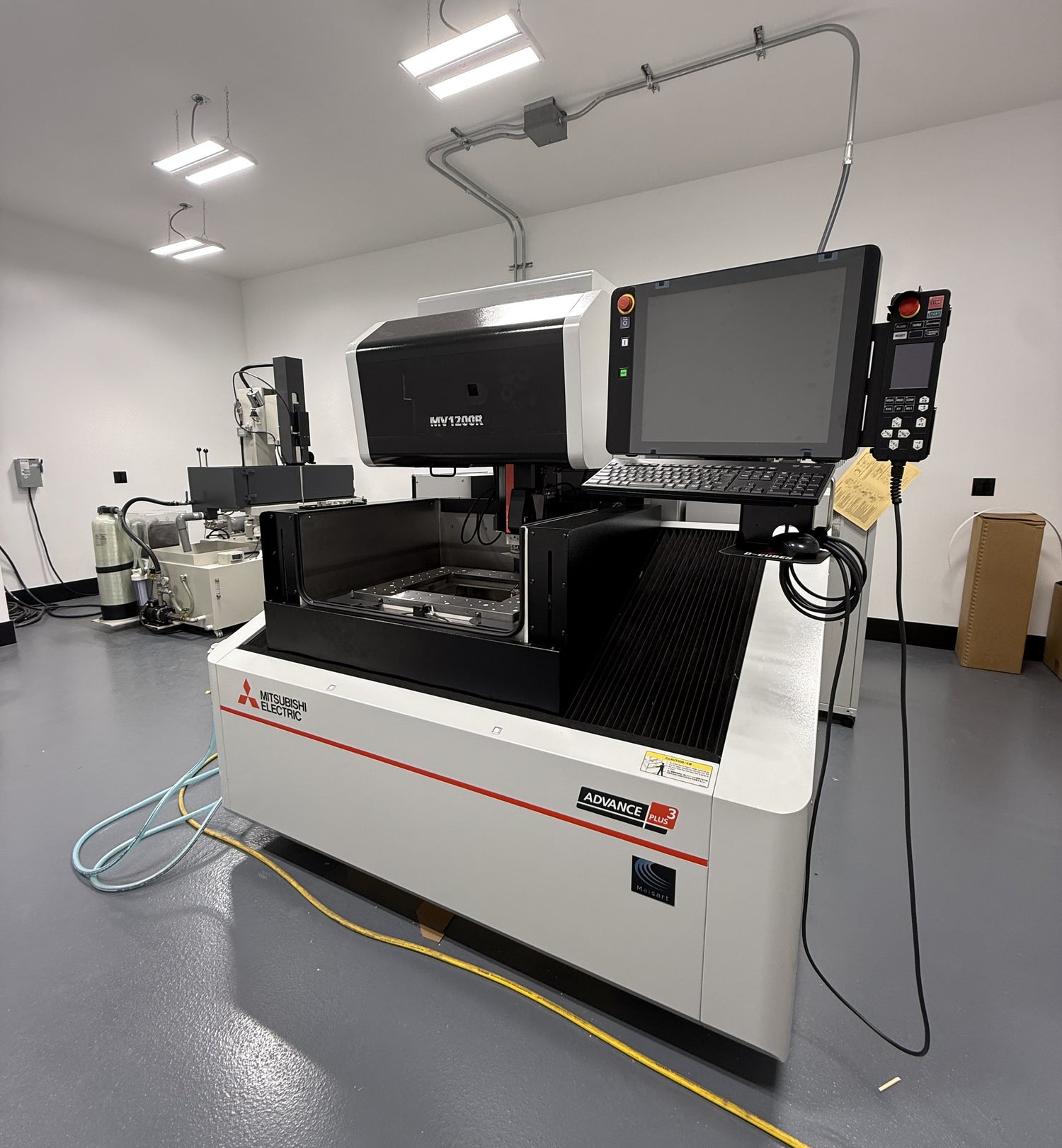

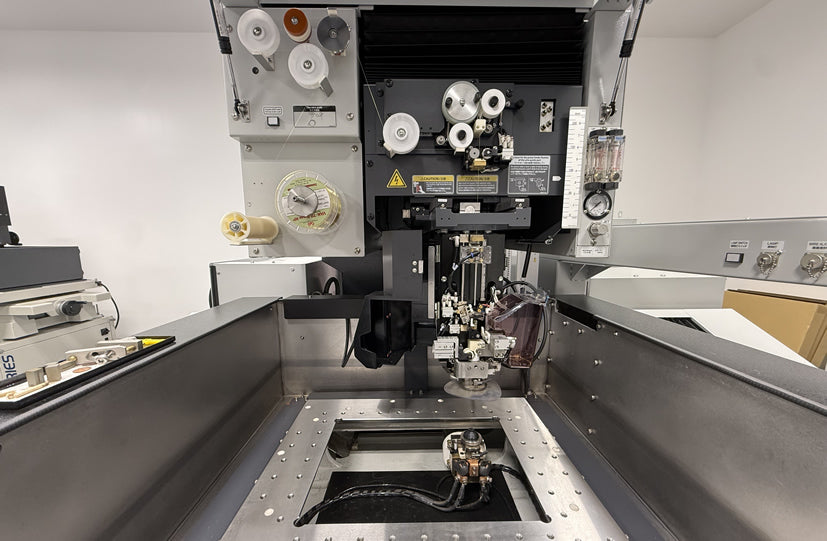

Our Mitsubishi 1200R Wire EDM is the backbone of our tooling innovation. This advanced machine allows us to achieve tolerances and finishes that were once impossible in extrusion die making.

  • High-Precision Cutting

    Achieve ±0.0001” accuracy with Mitsubishi’s linear shaft motor and optical drive system.

  • Fine Wire Diameter

    Cut with wires as small as 0.004” (0.1mm) to machine intricate details and sharp corners.

  • Superior Surface Finishes

    Enhanced power supply performance reduces surface roughness by up to 50%.

  • Automated Wire Threading

    Advanced annealing system and break-point insertion allow for faster setups, even on thick or complex workpieces.

  • Energy and Cost Savings

    Real-time cost management and energy-efficient systems reduce operating costs and material waste, savings that get passed on to customers.

  • Productivity Enhancements

    High-speed cutting + smart controls = fewer passes required to reach finish quality, cutting machining time significantly.
Explore the specs

  • Capabilities for Plastic Extrusion Companies

    Tailored for Extrusion Tooling Needs

  • With Wire EDM, we deliver:

    • Complex die profiles for custom extrusion shapes
    • Sharp, clean corners for improved profile accuracy
    • Compatibility with hardened steels and exotic alloys
    • High-volume consistency across repeated die runs

Applications in Custom Profiles

Wire EDM gives Pauley Plastic the flexibility to create or refine tooling for an extensive range of extrusion needs. By delivering dies with tighter tolerances, sharper edges, and smoother finishes, we help extrusion companies run faster, reduce waste, and achieve cleaner profiles across industries.

  • Extrusion Dies for Windows, Seals, and Gaskets

    Produce accurate, repeatable tooling for architectural and automotive profiles where fit and finish are critical.


  • Pipes, Tubing, and Structural Profiles

    Ensure smooth flow paths and consistent wall thicknesses in round, rectangular, or custom tube designs.

  • Medical Tubing with Micro-Tolerances

    Support the production of precision tubing for medical devices and life sciences applications where reliability and compliance are paramount.

  • Complex Geometric Profiles

    Cut sharp corners, intricate contours, and unique shapes that traditional machining can’t achieve.

  • Repair and Modification of Existing Dies

    Restore or adapt worn tooling to extend service life, reduce downtime, and keep production moving instead of starting from scratch.

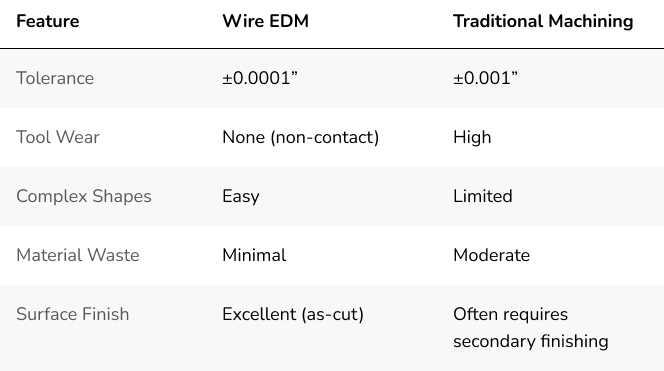

  • Why Choose Wire EDM Over Traditional Methods?

    Wire EDM gives our customers faster lead times, reduced rework, and higher quality tooling than conventional machining can deliver.

Industries We Support with Wire EDM

  • Construction & Architecture

    Windows, doors, seals, gaskets

  • Automotive & Transporation

    Weatherstrips, interior seals, tubing

  • Medical & Life Sciences

    Precision tubing, small-scale extrusions

  • Industrial & Consumer Products

    Complex geometric profiles, custom designs

  • OEM & High-Volume Manufacturing

    Repeatability for multi-site production
